FTTH Outdoor Drop Cable

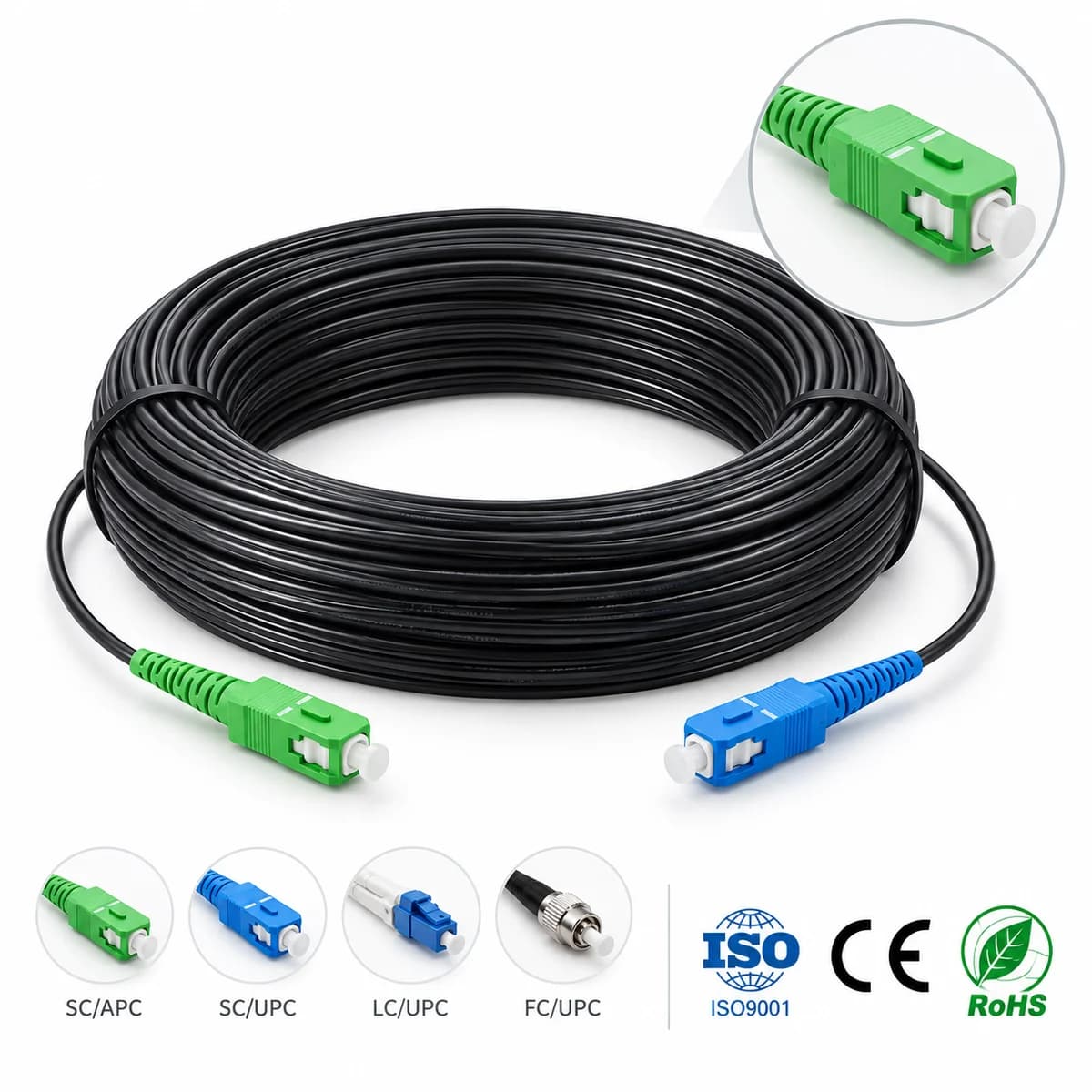

Pre Connectorized FTTH Drop Cable
Factory-terminated outdoor FTTH drop assemblies with made-to-order connectors and lengths. Match the cable construction, each endpoint and the installation route before ordering. For Latin American ISP rollouts, separate the outdoor distribution-box interface from the indoor outlet/ONT interface. Build a length-by-household BOM and identify the destination city or port; do not assume every box and ONT uses the same polish.
Images show connector and length options, not one fixed assembly or proof of certification. Confirm the ordered configuration and applicable documents.
Product Information
Key Features & Specifications
The values, options and construction details below are general selection references, not an approved specification for this model. They do not confirm suitability or availability for an order. Final parameters and construction must be confirmed in the quotation and agreed technical documents before ordering.
Main Features
- Connector and length customization
- End A / end B configuration confirmed before production
- Length-by-quantity packing and identification
- Cable, connector and installation accessories quoted as an agreed kit
Technical Specifications
| Connectors | SC / LC / FC / ST / MPO / E2000 and other interfaces can be customized; confirm the exact connector and polish at each end. |
|---|---|
| Termination | One or both ends, identical or different interfaces by order; MPO fibre count, pin gender and polarity require separate confirmation. |
| Finished length | Custom lengths; quote quantity for each length and agree connector-to-connector measurement and tolerance. |
| Fibre selection | Confirm fibre type and count; G.657A1 / G.657A2 and 1 / 2 / 4 fibres are selection options, subject to the assembly drawing. |
| Cable construction | Outdoor jacket, strength member and messenger as required by the route; confirm UV exposure, support/clamps and building-entry transition. |
| Optical acceptance | Confirm insertion loss, return loss, wavelength, test method and report requirement in the order. IEC 61300-3-4 is an attenuation measurement reference, not a universal acceptance limit. |
| Mechanical limits | Tensile load, bend radius, dimensions and temperature depend on the selected cable; use the approved specification, not the connector type. |
| Packing | Individual coil/bag, length label, end identification, carton quantity and OEM marking by agreement. |
Our factory has CE and RoHS documentation and ISO 9001 certification. Images of these documents are available on request.
Applications
Distribution point to buildingOutdoor subscriber access
Latin America Network Checklist
Confirm the Local Route, Climate and Import Plan
Local route
Distribution point to building
Regional exposure
Confirm tropical UV, coastal humidity, wind, flooding, rodents, fire rating and indoor transition needs.
Port and import plan
Individual coil/bag, length label, end identification, carton quantity and OEM marking by agreement.
RFQ: send one line for each assembly
For Latin American ISP rollouts, separate the outdoor distribution-box interface from the indoor outlet/ONT interface. Build a length-by-household BOM and identify the destination city or port; do not assume every box and ONT uses the same polish.
- End A and end B: connector type, APC/UPC where applicable, one or two terminated ends.
- Fibre type/count and cable model or required construction.
- Finished length, measurement reference, tolerance and quantity per length.
- Route, entry opening and installation method; check that the protected connector can pass.
- Required insertion/return loss, wavelength, inspection and test records.
- Labels, individual packing, accessories, destination and required delivery date.
An outdoor cable does not make a standard connector waterproof. Specify the enclosure or an agreed sealed interface; do not pull on the connector or boot.
Blog
Outdoor vs Indoor Drop Cable: Which One Belongs on an FTTH Route?
A route-based comparison of outdoor aerial and indoor FTTH drop cable covering exposure, support, jacket, building entry, fibre handling and accessories.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models.
Product FAQ
Common Buyer Questions
How should an ISP build the household drop BOM?
For Latin American ISP rollouts, separate the outdoor distribution-box interface from the indoor outlet/ONT interface. Build a length-by-household BOM and identify the destination city or port; do not assume every box and ONT uses the same polish.
Can a box connector differ from the ONT connector?
Yes. Define each end separately. Never directly mate an APC endface to a UPC endface; a cable with different ends must match the corresponding port at each end.
What must the installation contractor check on site?
An outdoor cable does not make a standard connector waterproof. Specify the enclosure or an agreed sealed interface; do not pull on the connector or boot.
